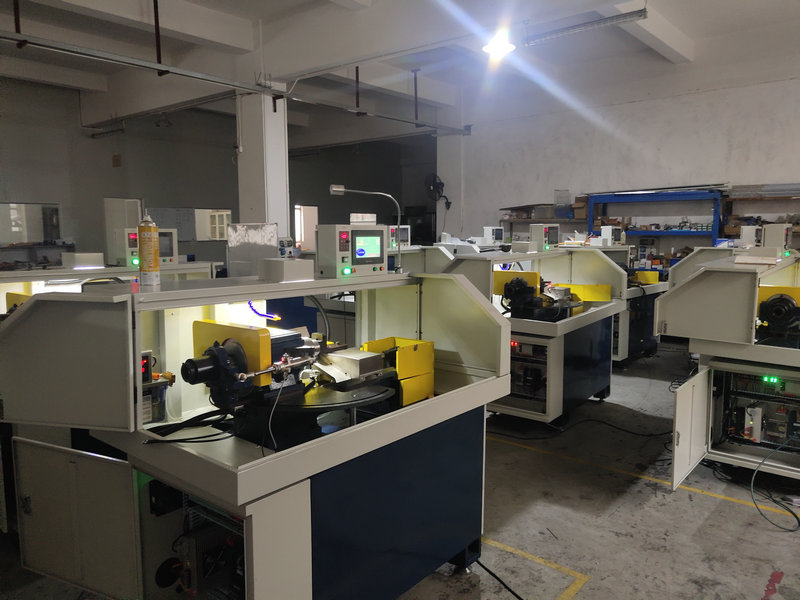

CNC precision small module gear shaper

1. Scope of use of machine tools

This machine tool is a small modulus CNC gear shaper machine, mainly used for processing small modulus straight gear; Involute splines can be machined with special tools. The machine has the advantages of high precision, easy operation and so on, and the machining precision of cylindrical gears can reach 6 levels. It is suitable for all kinds of instruments, instrument industry, reducer, military industry and so on.

2. Main performance and structural characteristics of the machine tool

2.1 The longitudinal layout of the machine tool, bed, column, tool rest, table have good structure and transmission rigidity, to ensure the machine tool high processing accuracy, high reliability and low noise.

2.2 The machine is a three-axis CNC gear shaper, which adopts a special CNC system to realize the rotation of gear shaper cutter; Worktable spindle rotation; The table moves in a radial straight line.

2.3 The machine adopts a special structure tool mechanism (proprietary technology), which can achieve accurate, stable and low noise tool movement.

2.4 Machine tool holder and table adopt high precision worm gear.

2.5 The tool holder of the machine tool adopts strong lubrication to meet the requirements of high-speed stroke of the tool shaft.

2.6 A reasonably arranged cooling system adopts large oil cooling to take away the chip heat in time, which is conducive to the stability of the machining accuracy of the machine tool.

2.7 The machine is equipped with full protection, good visibility, easy operation and maintenance.
